	ZGP Vacuum Drier
	JTZ Series Vibration Drier
	ZF series Vacuum Generator Equipment
	QSC Series Wind Power Transport Equipment
	JZJ Series Vacuum Pump Units
	2-Stage Liquid Vacuum Pumps Series 2SK
	Liquid Vacuum Pumps and Compressors Series SK, SZ
	liquid Vacuum Pumps

Products

VACUUM PUMP UNITS

Features:
1. High Pumping Speed
2. Short Pumpdown Time
3. Model JK and JTK 10-2-10-4 Pa
Model JF 10-2-10-4 Pa
4. Producing Clean Vacuum by Model JF Units

Applications:
1. Chemical Engineering
2. Petroleum Industry
3. Elegtronics Industry
4. Vacuum Metallurgy

Note:Offer Ultra-High Vacuum Unit with its Ultimate Pressure lower than 10-8 Pa to meet the customer requirements

Option

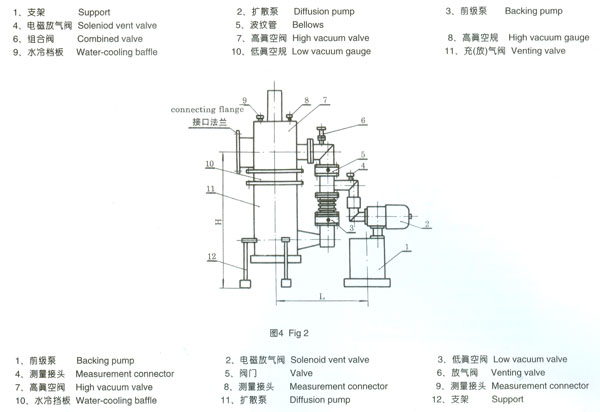

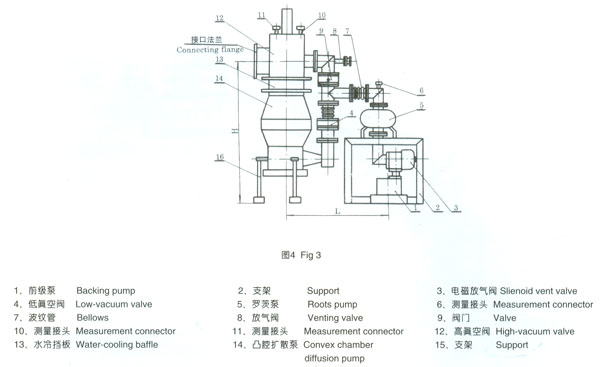

To meet your application demands, you can choose Fig.1 for Model JK and JTK 200 (or less than 200) diffusion pump units, Fig.2 and fig.3 for Models JK and JTK (or more than 300) diffusion pump units, FigA for Model JF turbomolecular pump unit.

Outline of Model JK Diffusion Pump Unit

Model		JK-100	JK-150	JK-200	JK-300	JK-400	JK-630	JK-800
Ultimate pressure (Pa)		10-4
Pumping speed (1/S)		100	280	420	900	1800	4000	6500
Max.pumping pressure (Pa)		35
Heating power (Kw)		0.8	1	1.5	2.5	4.5	7	9
Matched main pump		K-100	K-150	K-200	K-300	K-400	K-630	K-800
Matched baffle		LB-100	LB-150A	LB-200B	LB-300A	LB-400	LB-630	LB-800
Matched valve		GD-100	GD-150	GD-200	GDO-300	GDO-400	GDO-630	GDO-800
Matched backing pump		2X-4		2X-8	2X-15	2X-30	2X-70	2X-70 ZJ-500
Connecting fiange		LF-100	LF-150	LF-200	LF-300	LF-400	LF-630	LF-800
Structure dimensions(mm)	H	870	1000	1300	1500	1800	2100	2500
Structure dimensions(mm)	L	550	650	750	850	950	1100	2000

Outline of Model JTK Diffusion Pump Unit

Model		JTK-100	JTK-150	JTK-200	JTK-300	JTK-400	JTK-500
Ultimate pressure (Pa)		10-4
Pumping speed (1/S)		180	370	600	1400	2500	4000
Max.pumping pressure (Pa)		35
Heating power (Kw)		0.8	1	1.5	2.2	4	6
Matched main pump		TK-100	TK-150	TK-200	K-300	TK-400	TK-500
Matched baffle		LB-100	LB-150A	LB-200B	LB-300A	LB-400	LB-500
Matched valve		GB-100	GD-150	GD-200	GDQ-300	GDQ-400	GDQ-500
Matched backing pump		2X-4	2X-8	2X-15	2X-30	2X-70	2X-70 ZJ-500
Connecting fiange		LF-100	LF-150	LF-200	LF-300	LF-400	LF-500
Structure dimensions(mm)	H	870	1000	1300	1500	1800	1900
Structure dimensions(mm)	L	650	750	850	950	1100	1500
